Express Pro 53
Corrugated roof and wall sheets
A classic sinusoidal corrugated sheet: a 76 mm pitch, 20 mm deep, on a 991 mm cover. Roll-formed from 0.7 mm colour-coated steel and cut to length, for roofs, and for walls over MET-PRO SFS in our Express Pro build-ups.
- Cover width
- 991 mm
- Pitch and depth
- 76 mm, 20 mm
- Material
- 0.7 mm coated steel
- Lengths
- 1 m to 6 m
Why specify Pro 53
A sinusoidal corrugated sheet for roofs, and for walls over MET-PRO SFS.
-
Roof or wall
Sold as a roof sheet, and detailed as a wall over MET-PRO SFS in our Express Pro build-ups.
-
Cut to length
Sheets are cut to order from 1 m to 6 m, so there is less to cut on site.
-
Two dark finishes
Colour-coated steel in RAL 7016 Anthracite grey or RAL 9017 Traffic black.
Specification
From our drawings and the product data.
Profile
- Profile
- Sinusoidal corrugated, 14 crests
- Cover width
- 991 mm
- Pitch
- 76 mm
- Depth
- 20 mm
- Edges
- 16 mm critical leg, 5 mm runout leg
Material and supply
- Material
- 0.7 mm colour-coated steel
- Lengths
- 1 m to 6 m, cut to order
- Colours
- RAL 7016 Anthracite grey, RAL 9017 Traffic black
- Buy online
- FAB Supplies, our group's shop
Use and build-up
- Use
- Roofs, and walls over MET-PRO SFS

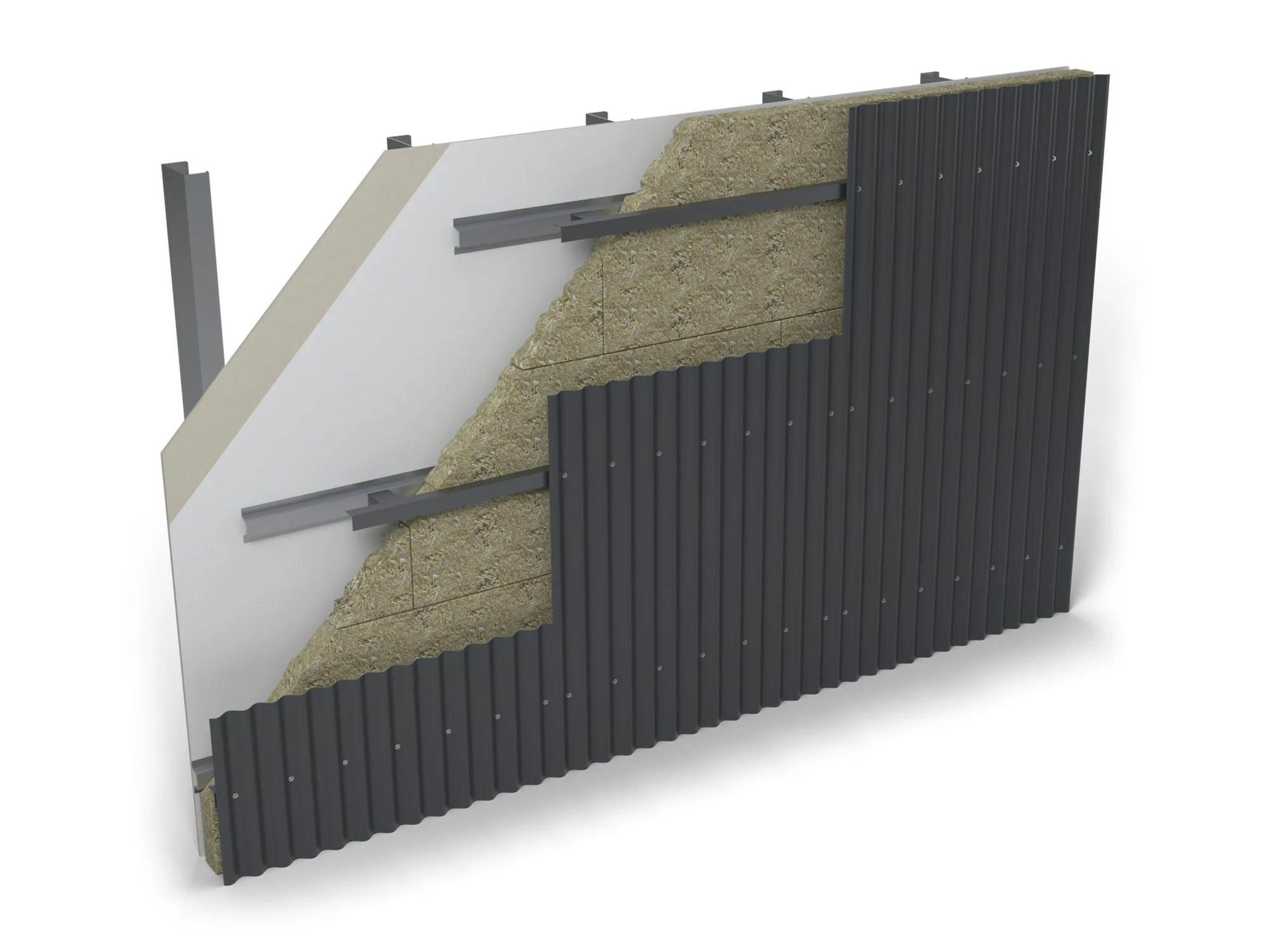

- Wall build-up
- Brackets at about 1,167 mm centres, 1.6 mm top hats 30 mm deep, breather membrane, 12.5 mm sheathing board, MET-PRO SFS (Express Pro build-up)
The section
The profile end-on, at true scale, with the printed dimensions. Ask our technical team for the CAD section.
More views
-
(opens the photo viewer)
Express Pro 53 corrugated roof in RAL 7016
-
(opens the photo viewer)
Express Pro 53 corrugated roof, sheets cut back to the support
Colours
The finishes Pro 53 is made in. Screen colours are approximate.
- RAL 7016 Anthracite grey Buy online in RAL 7016 Anthracite grey at FAB Supplies (opens in a new tab)
- RAL 9017 Traffic black Buy online in RAL 9017 Traffic black at FAB Supplies (opens in a new tab)
Buy online, or ask us for a quote
Smaller orders
Order Pro 53 online at FAB Supplies, our group's shop, cut to length.
Buy online: Corrugated sheet at FAB Supplies (opens in a new tab)Project quantities
Send the drawings and the quantities. We will price the sheets for your project.
Request a quoteDownloads
Our Express Pro build-ups over MET-PRO SFS. Ask us for the CAD section or a document that is not listed.
All downloadsPro 53 FAQs
Can I buy Pro 53 sheets online?
Yes. Smaller orders can be bought online at FAB Supplies, our group's shop, cut to length. For project quantities, send us the drawings and we will quote.
What lengths are available?
Sheets are cut to order from 1 m to 6 m.
Which colours can I order?
RAL 7016 Anthracite grey and RAL 9017 Traffic black, in colour-coated steel.
Can it be used on a wall?
Yes. Our Express Pro build-ups show Pro 53 as a wall over MET-PRO SFS, on brackets and top hats. The build-up drawings are in the downloads on this page.
Price a corrugated roof or wall
Send the drawings, the areas and the colour. We will price the sheets for your project.
Illustrative renders and 3D models, not photographs of completed projects.
